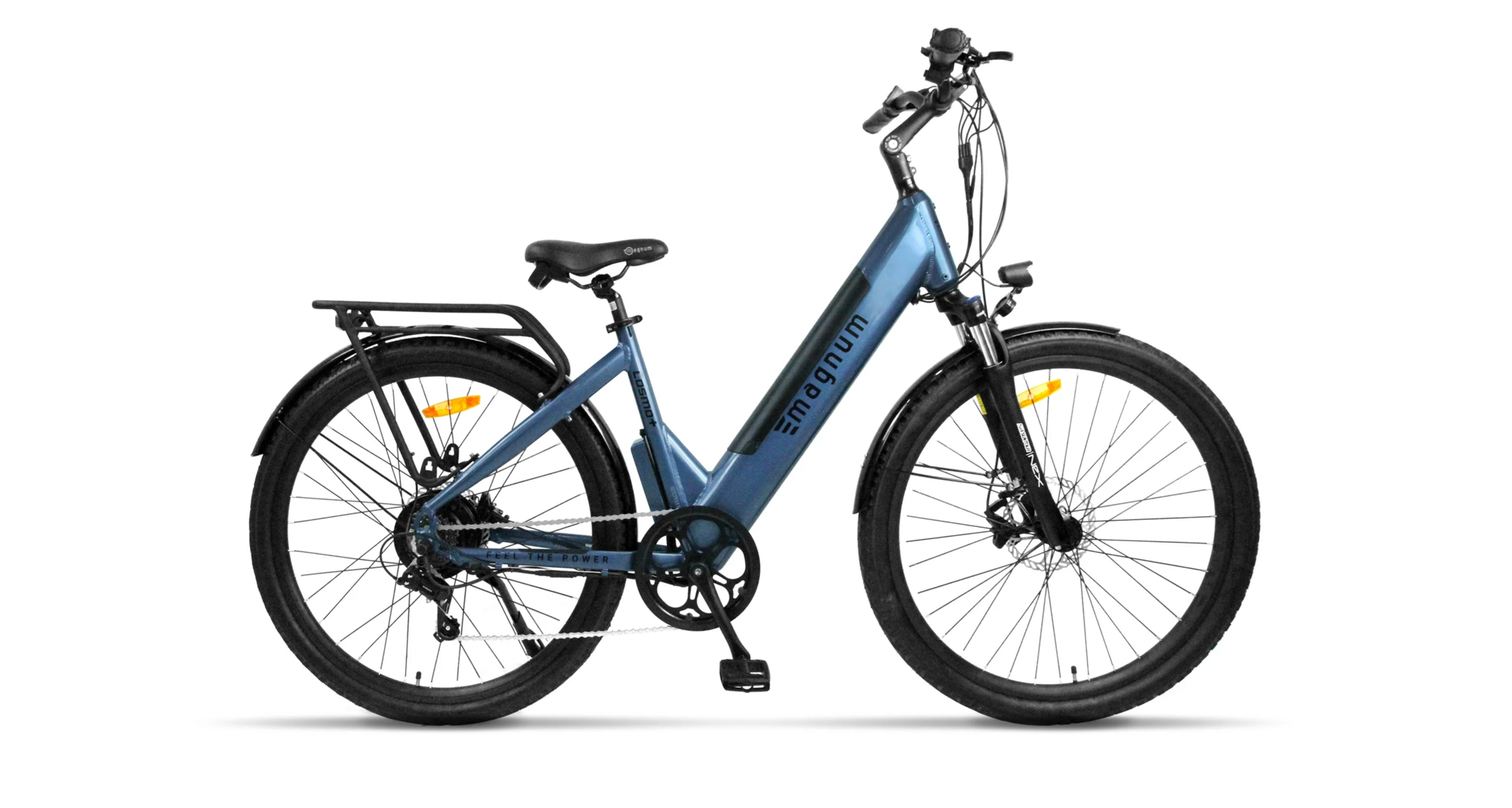

The Magnum Cosmo+ is the road ebike in our popular Cosmo series. The Low Step frame has a fully integrated battery to give the Cosmo+ better balance and a low profile. The power system is 48 Volts driving a 500 Watt motor and a 15Ah battery for the power and range you need to run errands or go on a relaxing bike ride.
- Category: Touring
- Class: Can be configured to a Class 1, 2, or 3 E-Bike.
- Frame Type: Low-step
- Seating: Relaxed
- Perfect For: Paved / Light Trails / Recreation
The heart of the Magnum Cosmo+ is the integrated, long-range 48V / 15Ah / 720Wh Samsung battery that powers rides up to 50 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
- 50 miles (80 Kilometers) Max Range
- 7.5 Hours Charge Time
KENDA 700C ROAD TIRES
Navigate city streets with comfort and durability.
The wide Kenda 700 x 50c tires are comfortable, durable, and great for commuting and city uses. The larger wheel diameter and wide cross-section make them efficient, fast and comfortable.
|Seat Tube||18" (46 cm)|
|Reach||15.5” (39 cm)|
|Stand Over Height||23.25” (59 cm)|
|Virtual Top Tube Length||23.5” (60 cm)|
|Min Saddle Height||22” (56 cm)|
|Max Saddle Height||28" (71 cm)|
|Width||25.75" (65 cm)|
|Wheelbase||45.5” (116 cm)|
|Length||74.5” (189 cm)|
|Total Weight||60 lbs (27.25 kg)|
|Battery Weight||10 lbs (4.5 kg)|
|Recommended Minimum Rider Height||5'2"|
|Fork||SR Suntour NEX30 Suspension Fork with Lockout and Preload Adjustment|
|Tires||Kenda 700 x 50c|
|Brakes||Clarks Hydraulic Disc Brakes|
|Saddle||QF Saddle Black|
|Crankset||Aluminum Alloy, 52T, 170mm|
|Tape/Grips||Black Faux Leather|
|Accessories & Extras||Rear rack, front and rear lights included|
|Motor||Bafang Rear Hub-Drive 500W Nominal Output. 25 mph with Pedal Assist, 20 mph with Throttle.|
|Battery||48V, 15Ah, 720Wh|
|Charger||25-50miles per charge.|
|Controller/Display||Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD. Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time. Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode.|
* Subject to change without notice.
|Metallic Blue / Large / 700c||789554756464||210000027478|
|Champagne / Large / 700c||789554756433|
|Gunmetal / Large / 700c||789554756440||210000027480|
|Metallic Black / Large / 700c||789554756457|
|Metallic Green / Large / 700c||789554756471|
|Silver / Large / 700c||789554756488||210000027482|
