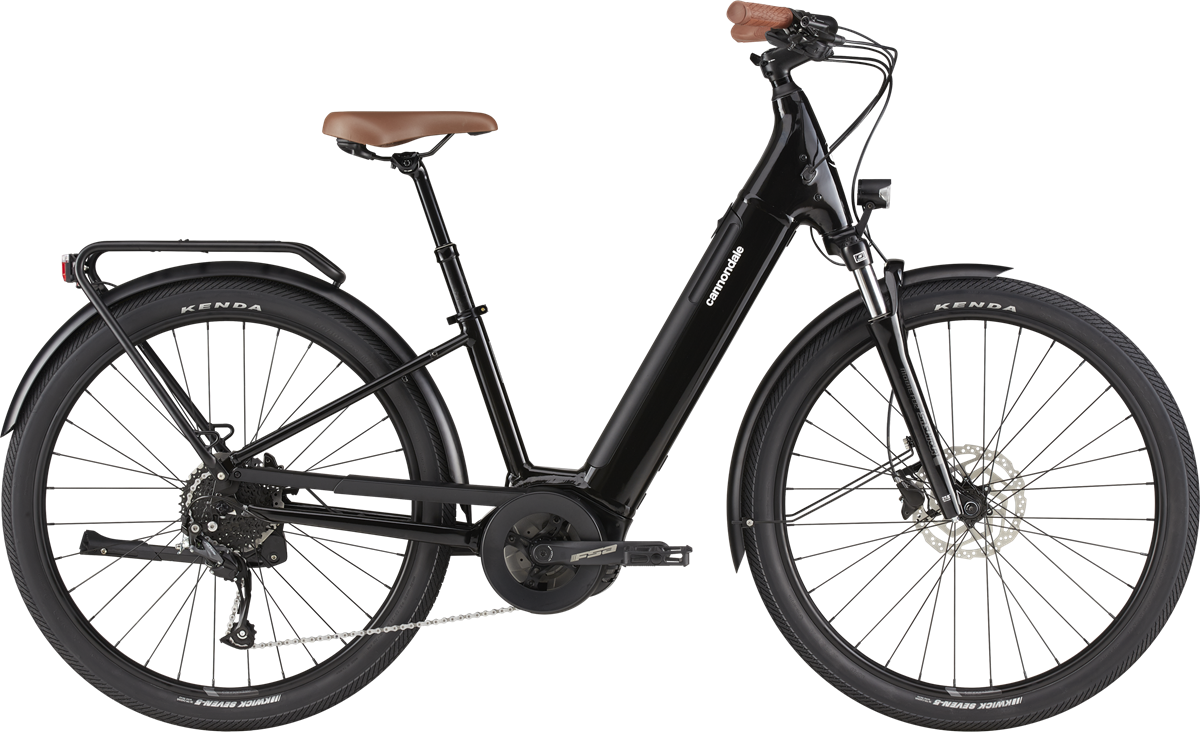

Cannondale Adventure Neo 3 EQ

Cannondale Adventure Neo 3 EQ
  • Color: Black
  • Color: Rally Red
  • Color: Dust Blue
$3,100.00 - $3,650.00
Please select options

Details

An electric-bike built for the city streets, the town pathways, and the great open roads. You are just one ride away from a good mood.

Geometry

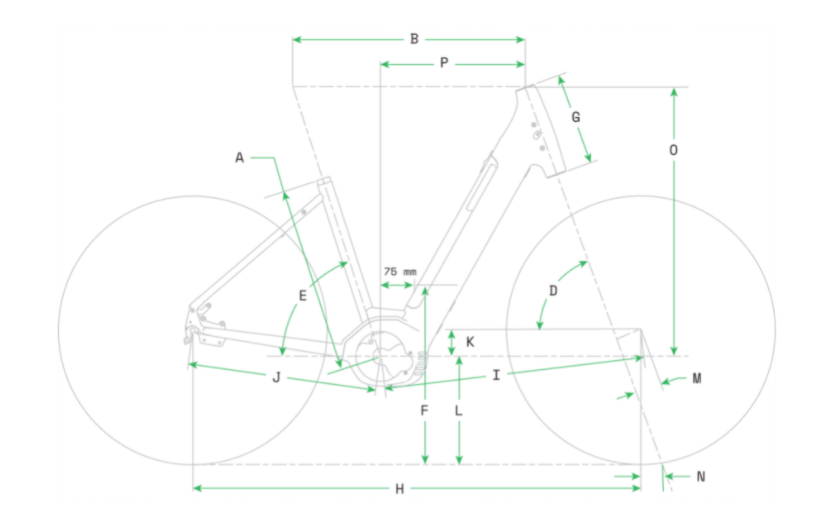

Geometry Chart:
Frame SizeSmallLarge
Wheel Size 27.5" 27.5"
A. Seat Tube Length (cm) 37 46
B. Top Tube Horizontal (cm) 48.4 61
C. Top Tube Actual (cm)
D. Head Tube Angle 70° 70°
E. Seat Tube Angle 72° 72°
F. Standover (cm) 44.5 45.5
G. Head Tube Length (cm) 21.5 23.5
H. Wheelbase (cm) 112.4 116.6
I. Front Center (cm) 64.4 68.6
J. Chain Stay Length (cm) 48.8 48.8
K. Bottom Bracket Drop (cm) 6.8 6.8
L. Bottom Bracket Height (cm) 28.4 28.4
M. Fork Rake (cm) 4.2 4.2
N. Trail (cm) 8.3 8.3
O. Stack (cm) 68.8 70.7
P. Reach (cm) 37 40.5
Sizes:
Frame SizeRider Height
Small 4'11" - 5'7"
Large 5'7" - 6'6"

Specs

Frame SmartForm C3 Alloy step-thru frame, removable downtube battery, fully internal cable routing, post mount disc, dual waterbottle headtube mount
Fork SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout, crown light mount, 44mm offset
Rims Cannondale 2, double wall
Hubs (F) Shimano MT400, 15x100mm thru-axle / (R) Shimano TX505, QR
Spokes Stainless Steel, 14g
Tires Kenda Kwick Seven.5, 27.5 x 2.20"
Crankset FSA Bosch E-Bike, 38T
Shifters Shimano Altus, 9-speed
Rear Derailleur Shimano Altus
Cassette/Freewheel Shimano HG200, 11-36, 9-speed
Chain Shimano HG93, 9-speed
Brakes Shimano MT200 hydraulic disc, 180/160mm RT10 rotors
Handlebars Cannondale E-Series Alloy, ergo backsweep, 680mm
Tape/Grips Cannondale Comfort
Stem Cannondale 3 with Intellimount, Alloy, 31.8mm clamp
Headset Semi Integrated, 1-1/8"
Seatpost TranzX, suspension dropper post, 31.6, 50mm travel
Saddle Cannondale Ergo Comfort
Pedals Cannondale Comfort
Accessories & Extras Front and rear lights, fenders, rear carrier
Charger Bosch 2A

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / Small 884603873793 C68301U20SM 210000025271
Black / Large 884603873809 C68301U20LG 210000025272
Rally Red / Small 884603869444 C68301U10SM
Rally Red / Large 884603869451 C68301U10LG
Dust Blue / Small 884603937662 C68301U30SM
Dust Blue / Large 884603937679 C68301U30LG
