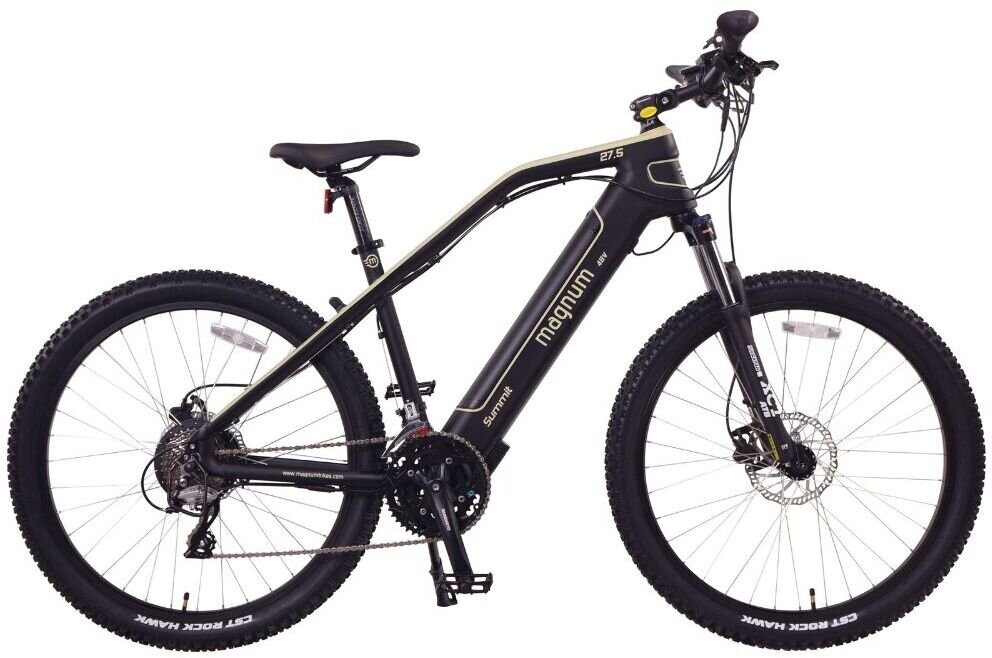

Magnum Bikes Summit

The Summit 27.5 and 29 trail/mountain e-bike's stand-out features are the fully integrated battery for a sleek design and a range of accent colors span the top of the down tube. 48v, 500w power system with max speed of 25 MPH with pedal assist and 20 MPH throttle only. The stunning design and high-end components will turn heads.

Model:
Magnum Summit

Body Position:
Forward

Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1

Warranty:
1 Year Comprehensive

Max Load:
265lbs

ELECTRONIC DETAILS

Motor Type:
Das-kit R4 Rear Geared Hub Motor

Motor Output:
48v 500w

Battery Voltage / Amp Hours / Watt Hours:
48v / 12.8ah / 614wh

Battery Chemistry:
Lithium Nickel Cobalt Manganese (Li-ncm)

Estimated Charge Time:
6.5 Hrs

Estimated Min And Max Range:
25 To 55 Miles (Depending On Riding Style, Terrain, Rider Weight and Pedal Assist Level.)

Display Type:
Fixed, Backlit, Monochrome Lcd

Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Drive Modes:
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed:
25mph With Pedal Assist, 20mph Throttle Only

BICYCLE DETAILS

Frame Type:
High Step with fully integrated battery

Frame Material:
Aluminum Alloy

Fork Details:
Sr Suntour XCT ATB Spring Suspension, 100mm, 80mm

Gearing Details:
24 Speed 3×8

Shifter Details:
Shimano Shifter

Cranks:
Shimano

Stem:
Promax, Aluminum Alloy

Brake Details:
Tektro Hydraulic Disc Brakes

Grips:
Velo Flat Rubber

Saddle:
Promax

Seatpost / Seatpost Dimensions:
Promax

Rims:
Aluminum Alloy

Tires:
CST Rock Hawk

Wheel Size:
27.5? (29?) X 2.4
