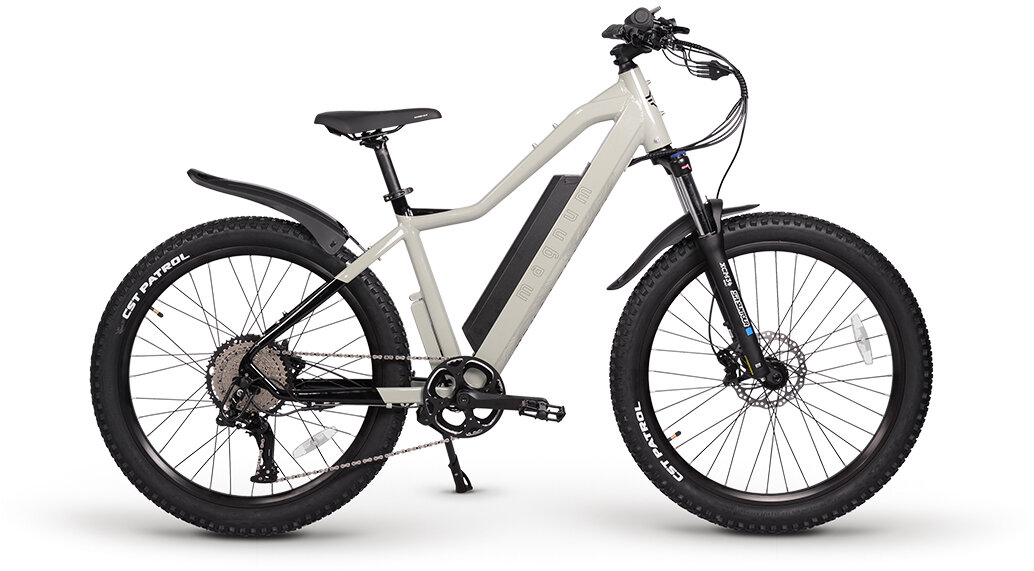

Magnum Bikes Magnum Peak T5

The Magnum Peak T5 has a torque pedal assist sensor that works in tandem with the rider for a more energy efficient ride (saving battery power). The 1×11 wide range drive train eliminates the front derailleur streamlining the bike and decreasing weight. These features powered by a 500W 48V power system with a top speed of 25 MPH make the Peak T5 an ideal choice for trail riding.

Currently Available in 3 frame colors: Forest, Tan and Grey.

40-60 miles per charge
500 watt geared hub motor
48 volt 15 amp hour Lithium-Ion battery

Model:
Magnum Peak T5

Body Position:
Forward

Electric Bike Class:
Throttle On-demand (Class 2), Speed Pedelec (Class 3)
*Throttle can be removed for Class 1

Warranty:
One Year Limited Warranty

Max Load:
265lbs

ELECTRONIC DETAILS
Motor Type:
Bafang Rear Hub Motor

Motor Output:
48v 500w

Battery Voltage / Amp Hours / Watt Hours:
48v / 15Ah / 720Wh

Battery Chemistry:
Lithium-Ion

Estimated Charge Time:
7.5 Hrs

Estimated Min And Max Range:
40 To 60 Miles (Depending On Riding Style, Terrain, Rider Weight And Pedal Assist Level.)

Display Type:
Magnum Branded Velofox, 3.5? Diagonal, Fixed, Monochrome, Backlit LCD

Display Records:
Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Drive Modes:
Torque Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed:
25mph With Pedal Assist, 20mph Throttle Only

BICYCLE DETAILS

Total Weight:
60lbs

Battery Weight:
9lbs

Frame Type:
High Step

Frame Material:
6061 Aluminum Alloy

Fork Details:
Sr Suntour XSM34 Boost

Attachment Points:
Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses, Headtube Bosses

Gearing Details:
11 speed Rear Derailleur, 11-50t Rear Cassette

Shifter Details:
11 speed

Cranks:
Prowheel 42t chainring 170mm crank arms

Pedals:
Wellgo Aluminum Platform

Stem:
60 mm Length, Aluminum Alloy

Brake Details:
4-Piston Hydraulic Brakes

Lights:
Integrated front light controlled by display.

Grips:
Ergonomic Black Rubber

Saddle:
Selle Royal Essenza+

Seatpost / Seatpost Dimensions:
Promax, 30.4

Fenders:
Front & Rear MTB-style

Rims:
27.5?

Tires:
CST Patrol, 27.5? X 2.8?

Wheel Size:
27.5?
