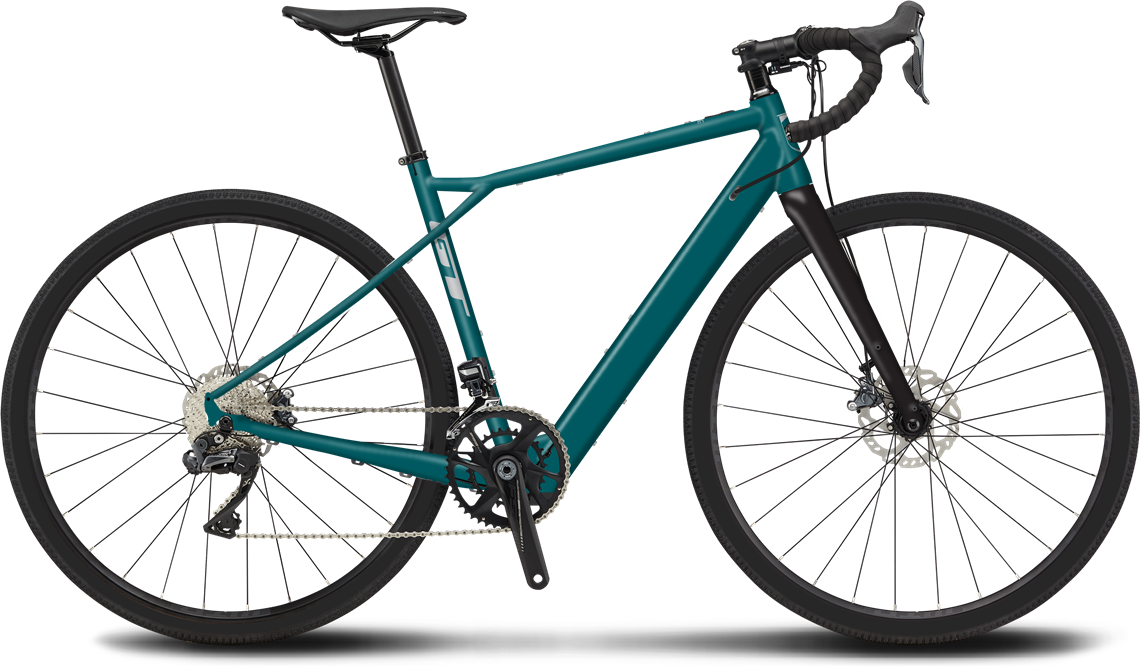

GT Grade Bolt

GT Grade Bolt
Deep Teal
Please select options
Please call us at (321) 939-2453 or email for availability.


Adding pedal assist to Bike Radar's gravel bike of the year? Yep. With the MAHLE ebikemotion drive unit and the Grade's floating seat stays you'll have all-day comfort and confidence for whatever comes your way.


Frame All New Grade Alloy 700c Frame, EnduRoad Triple Triangle Design feat. Floating Seatstays, Mahle Ebikemotion specific design, Internal Battery, Tapered Head Tube
Fork GT Grade E-Carbon, 1.5" Tapered Carbon Steerer, Flat Mount Disc, 12x100 Thru-Axle
Rims Alloy Double Wall, 32h
Hubs (F) Formula CRX-512, 12x100mm / (R) eBikemotion X35+
Spokes Stainless Steel, 13g
Tires WTB Nano Comp, 700 x 40, Tubeless Ready
Bottom Bracket Shimano BSA RS500
Crankset Shimano GRX, 46/30T
Shifters Shimano GRX400, 10-speed
Front Derailleur Shimano RX400
Rear Derailleur Shimano GRX RX400
Cassette/Freewheel Shimano HG500, 11-34T
Chain Shimano HG601
Brakes Shimano GRX 400 Hydro Disc, 160/160mm RT56 Rotors
Handlebars GT Butted 6061 Alloy, 16° Flare Drop
Tape/Grips GT Grip Bar Tape w/Gel, 3.5mm
Stem GT 3D Forged Alloy, 31.8
Headset 1.5" Lower to 1-1/8" Upper w/ Reducer, 25mm Alloy Top Cap
Seatpost Alloy Micro Adjust 27.2 x 350mm
Saddle Fabric Scoop Shallow Sport
Pedals Sold separately
Motor MAHLE ebikemotion drive unit
Charger X35 Charger

* Subject to change without notice.

Part Numbers

Option UPC MPN
Deep Teal / Small 038675212800 G61201M10SM
Deep Teal / Medium 038675212817 G61201M10MD
Deep Teal / Large 038675212824 G61201M10LG
Deep Teal / X-Large 038675219960 G61201M10XL
